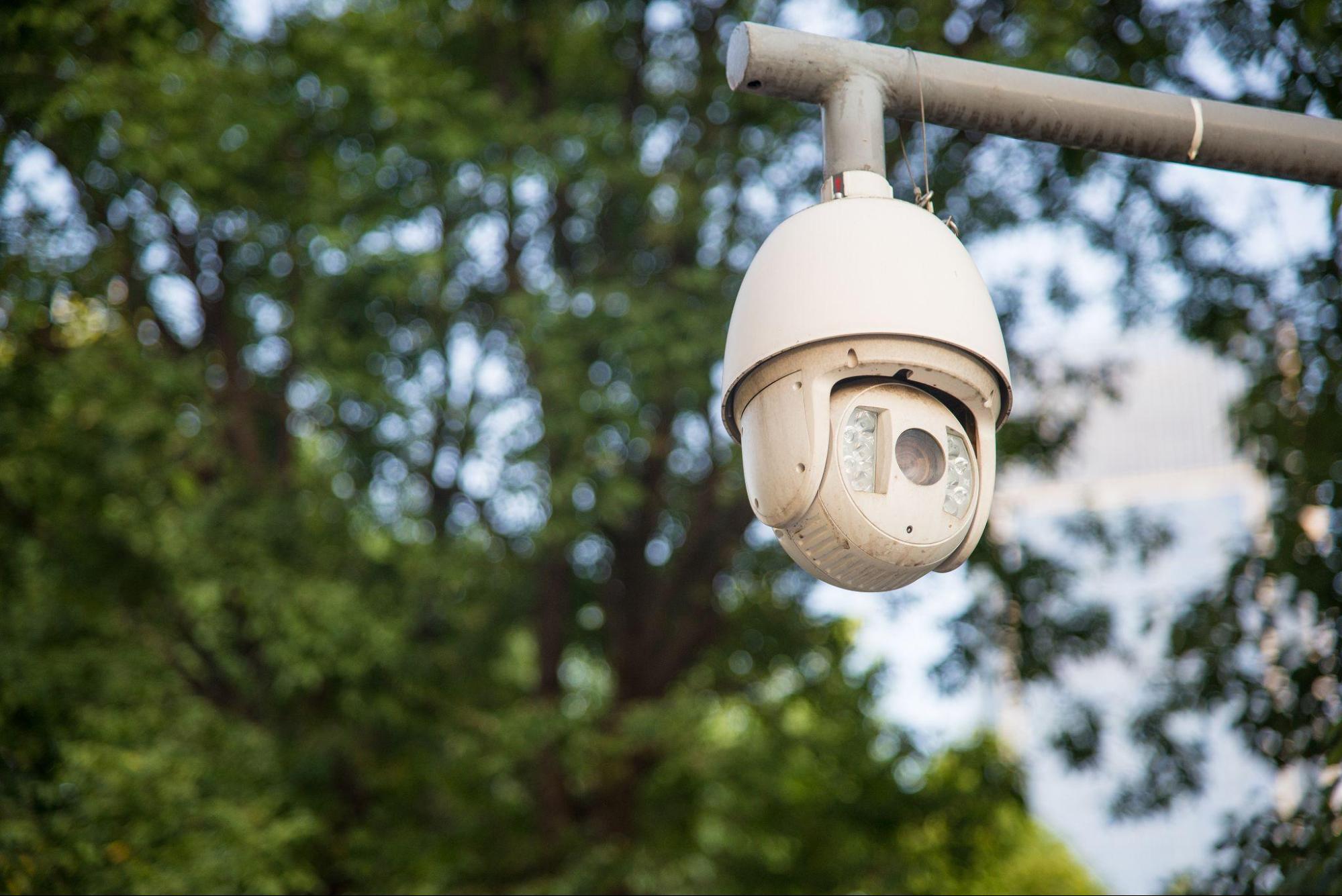

What Are PTZ Cameras?
PTZ stands for pan, tilt, and zoom, meaning that PTZ cameras are motorised video cameras that can move left and right (pan), up and down (tilt), and magnify an image (zoom). These movements can be controlled remotely in real time or set to run automatically, with modern units adding motion tracking, preset positions and more.
Key Features of a PTZ Camera
The core capabilities of a pan-tilt-zoom camera fall into four functions:
- Pan: The camera rotates horizontally, with many models offering a full 360-degree sweep for perimeter coverage.
- Tilt: Vertical movement lets the camera angle up and down, so high and low areas within a scene are captured.
- Zoom: Optical lenses magnify distant subjects without image degradation, which is what separates true zoom from the cropping used by digital zoom.
- Presets: Operators save specific angles as preset positions, allowing the camera to jump instantly to a defined viewpoint on command or on a set schedule.
Common Uses of PTZ Cameras
Understanding what PTZ cameras are used for begins with the sites they serve best:
- Security and Surveillance: Large open environments such as car parks, warehouses, and airports rely on a single PTZ camera to actively track movement across wide areas without deploying multiple fixed units.
- Live Streaming and Events: Houses of worship, auditoriums, and broadcast studios use PTZ cameras to follow speakers or performers fluidly throughout a production.
- Education and Conferencing: Remote classrooms and meeting rooms benefit from a camera that can pan across a group, keeping distributed attendees visually connected to the room.
Advantages of PTZ Cameras
The value of a PTZ camera lies in what a single unit can replace and what it can do that a static camera cannot. Four capabilities account for most of the operational and cost advantages on a well-specified site.
Wide Field of View
A single PTZ camera can rotate horizontally up to 360 degrees and tilt vertically up to 90 degrees, monitoring areas that would otherwise require several fixed units. On expansive sites, this makes the unit cost-effective compared with covering the same footprint through multiple static cameras.
Motion-Based Auto-Tracking
Intelligent motion tracking detects and follows movement within the field of view in real time, without manual input. This is especially valuable in unmanned or remotely monitored environments where no operator is watching the live feed continuously.
Remote Control Capabilities
Operators adjust angle and zoom remotely through a mobile or desktop application, responding to a live incident from any location. For sites without a full-time guard presence, this shortens the time between an alert and a visual confirmation.
Advanced Optical Zoom
Optical lenses on most PTZ units range from 10x to 30x magnification, holding image clarity at distances of up to 90 metres. This capability suits licence plate recognition at vehicle entries and identifying individuals across large open concourses.
What are the Disadvantages of a PTZ Camera?
Limited Simultaneous Coverage
Because a PTZ camera covers wide areas by moving between positions, it can only actively watch one direction at a time. While it is zoomed in on one incident, other zones may go unmonitored, which is why PTZ units work best when paired with a fixed CCTV camera network for constant baseline coverage.
Higher Upfront Cost
PTZ cameras carry a higher purchase price than fixed units, driven by motorised components, optical zoom hardware, and more involved installation. On large open sites, that cost is generally offset by needing fewer cameras to cover the same area.
Ongoing Maintenance Requirements
Motorised pan and tilt mechanisms introduce moving parts that need periodic servicing to stay reliable. A scheduled preventive maintenance contract helps identify wear in the motors and bearings before it develops into a fault.
What Is the Difference Between PTZ and Standard Cameras?
Dimension | PTZ Camera | Fixed Camera |
Field of View | Up to 360-degree pan and 90-degree tilt from a single unit | Fixed angle, defined at installation |
Movement | Motorised, controlled remotely or automated | None |
Zoom Capability | Optical, typically 10x to 30x | Usually digital, or none |
Control | Operable in real time from a remote device | No live control after installation |
Installation Simplicity | More complex, requires precise mounting and network configuration | Straightforward mount and alignment |
Cost | Higher upfront hardware and installation cost | Lower per unit |
Best Use Case | Large open areas needing active tracking | Fixed points needing constant coverage of a specific zone |
Maintenance | Periodic servicing of motorised components | Minimal moving parts, less frequent servicing |
PTZ Cameras in Singapore: Where They Are Used
Across Singapore’s built environment, PTZ cameras appear in four settings most often:
- Car Parks and Gated Compounds: A PTZ unit can sweep across large parking areas and track vehicles or individuals from entry to exit.
- Industrial and Warehouse Sites: Wide-area coverage of production floors, loading bays, and perimeter fencing keeps costs down where fixed cameras alone would require dozens of units.
- Commercial Lobbies and Atriums: One PTZ camera monitors an entire open floor area and zooms in on incidents as they occur.
- Retail and Shopping Centres: Tracking customer flow across wide concourses supports loss prevention teams and general site oversight.
Find the Right PTZ Camera Setup With Sin Chew Alarm
PTZ cameras are a powerful surveillance tool, but they perform best when integrated into a broader system that includes fixed cameras, access control, and a centralised management platform. The right configuration depends on site size, monitoring requirements, network infrastructure, and budget, all of which need a professional site assessment to specify correctly.
Since 1980, Sin Chew Alarm has designed and deployed CCTV cameras, home security systems, intercom systems, and door access systems in Singapore across commercial, industrial, and residential sectors, including PTZ cameras for large-scale and high-security sites.
Contact our team for a no-obligation site assessment and a PTZ configuration matched to your premises.
